Rear Differential Bushing Core
6082-T6 aluminum core for a rear differential mounting bushing on the GM T1XX platform. Part SS-CB0475-200 combines an extruded profile with CNC machining for the bushing assembly interface.
6082-T6 / GM T1XX / CNC

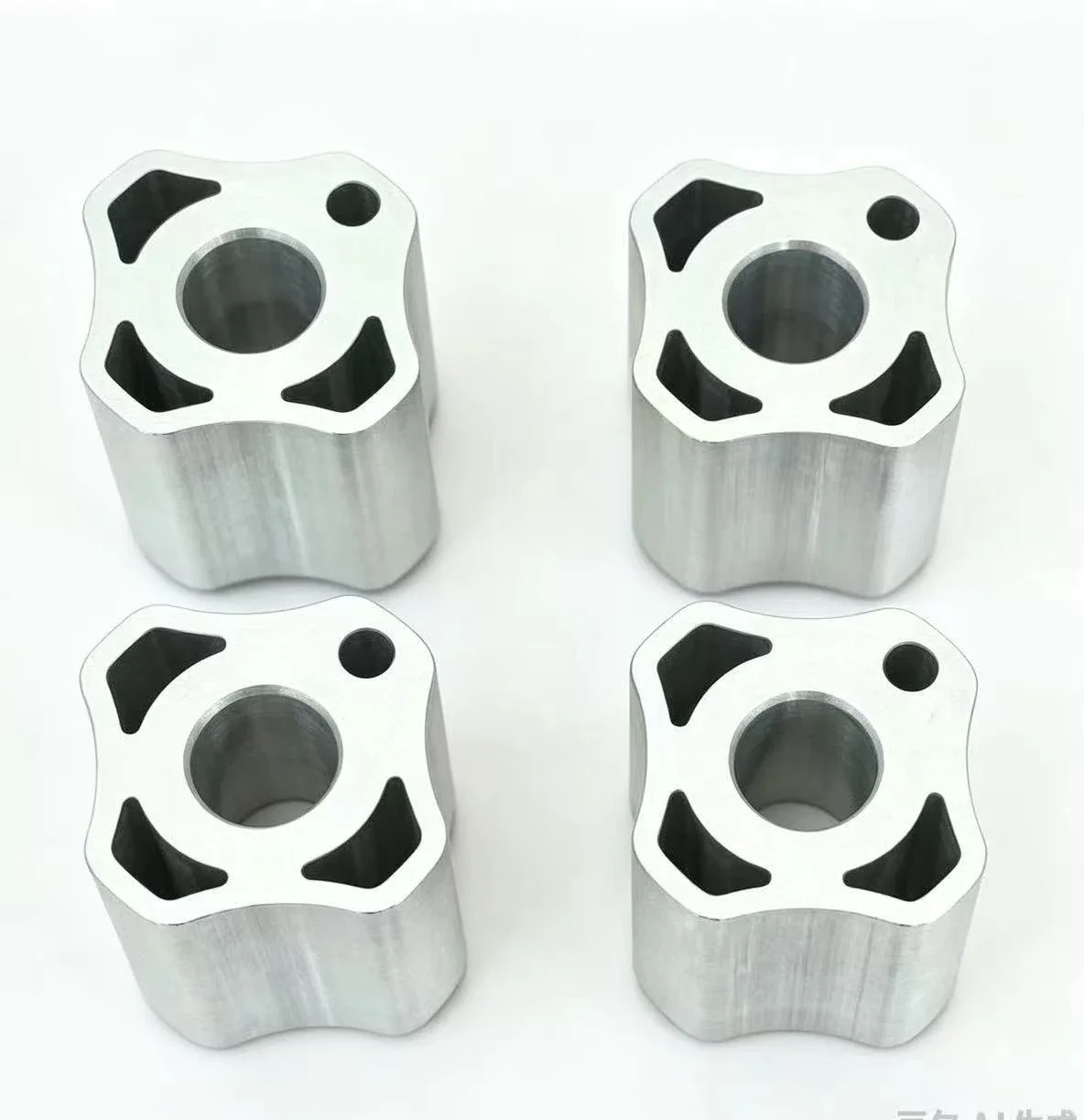

The aluminum core within the rear differential mounting bushing

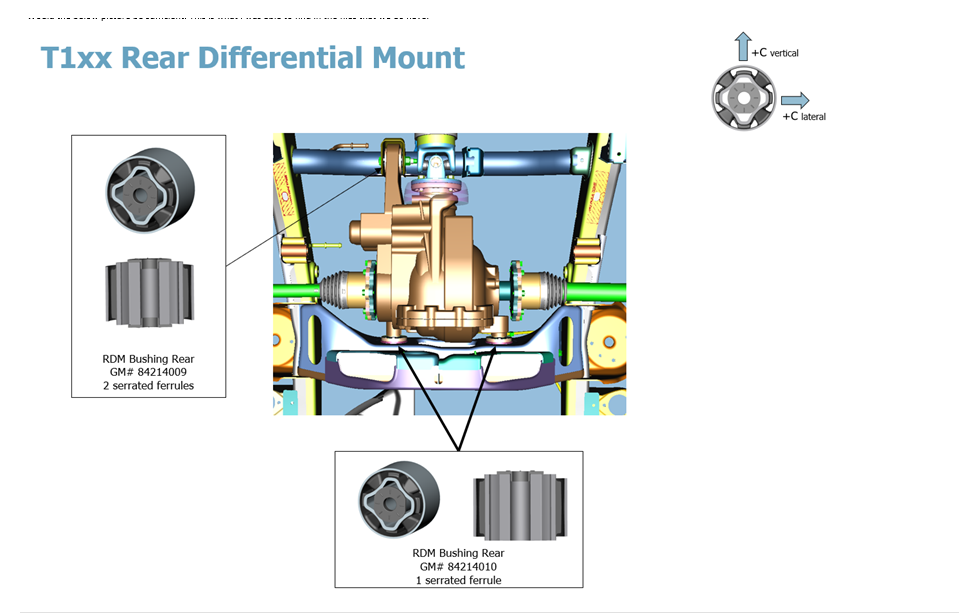

The complete bushing assembly connects the rear differential to the vehicle frame. Yuntian supplies the aluminum core shown here, which forms part of that assembly. The application drawing identifies the rear differential mounting location on the GM T1XX platform.
Product designation: CORE-REAR SUSP DIFF BUSHING
Product photographs

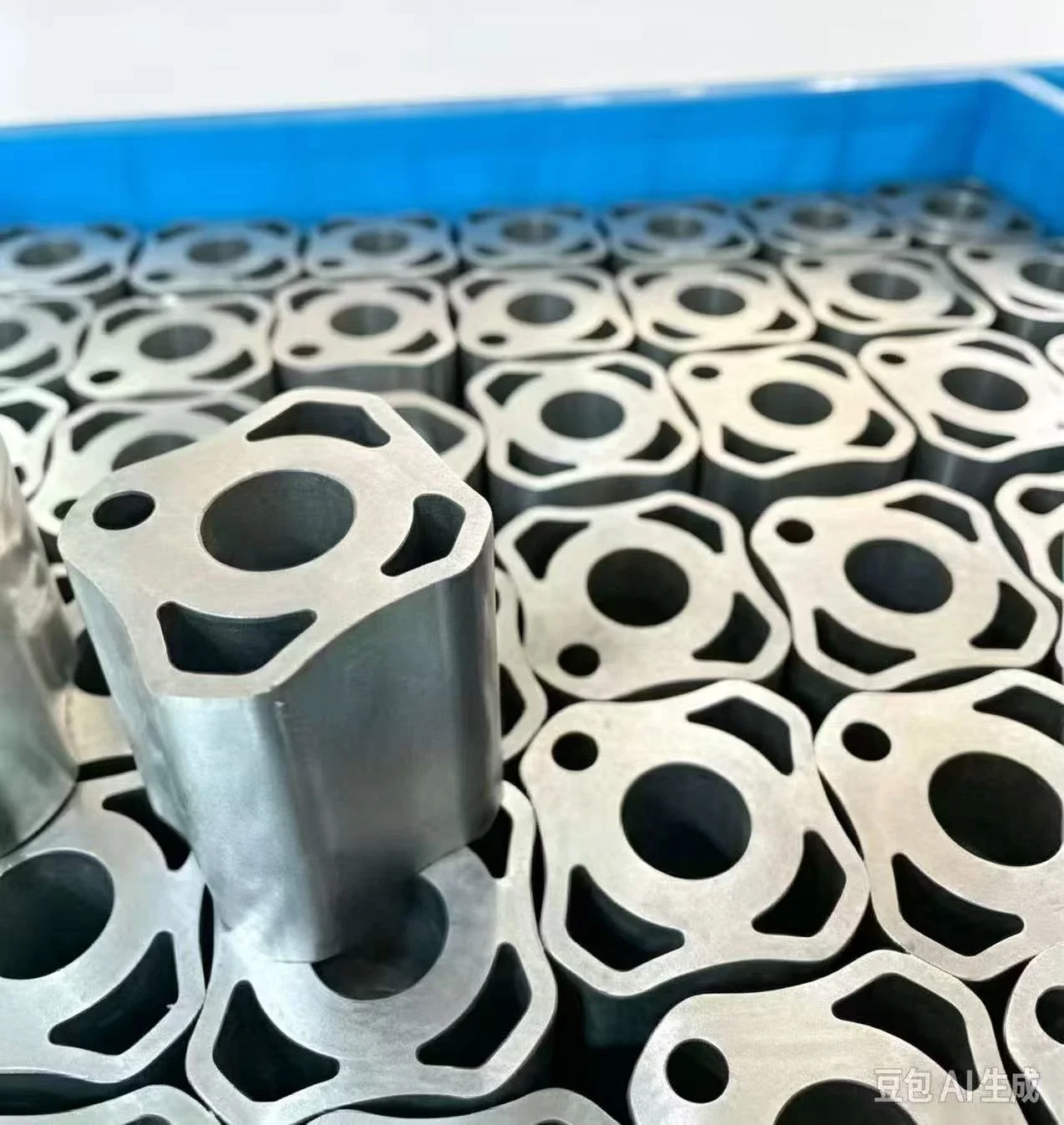

Explore the machined core, the profile sections and the finished components prepared for packing. Select an image to view it at full size.
An aluminum manufacturing route in 13 stages
Billet preparation and extrusion are followed by quenching, straightening, cutting and artificial ageing. Inspection precedes blank cutting, CNC machining, magnetic cleaning and final packing.
- 01Aluminum billets
- 02Preheating
- 03Extrusion
- 04In-line quenching
- 05Straightening
- 06Profile cutting
- 07Artificial ageing
- 08Material & profile inspection
- 09Blank cutting
- 10CNC machining
- 11Magnetic cleaning
- 12Finished component inspection
- 13Packaging & storage

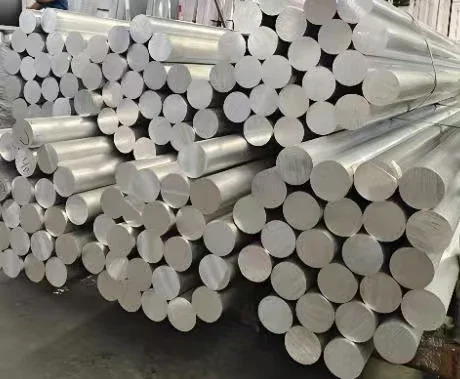

Aluminum billets

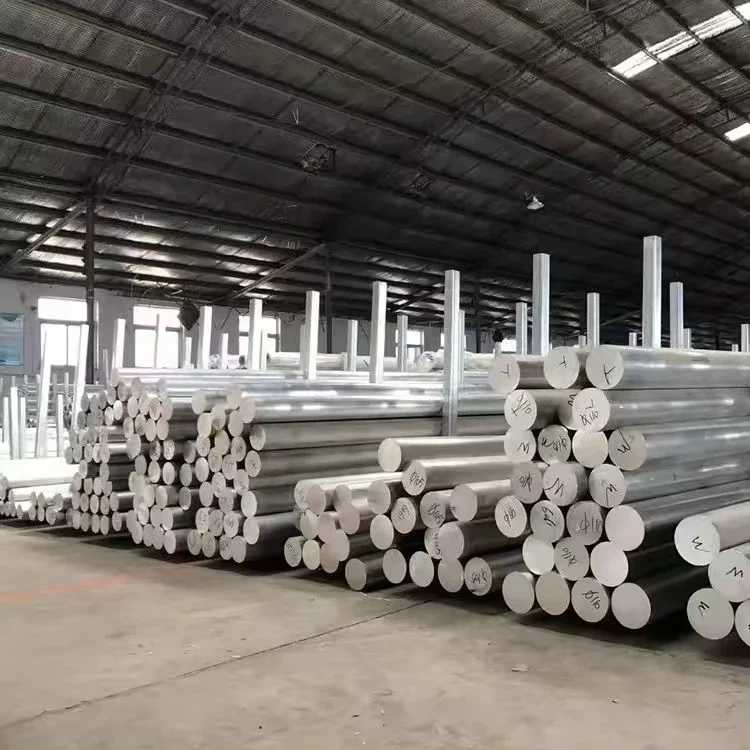

Aluminum cast billets form the starting material for the extrusion route.

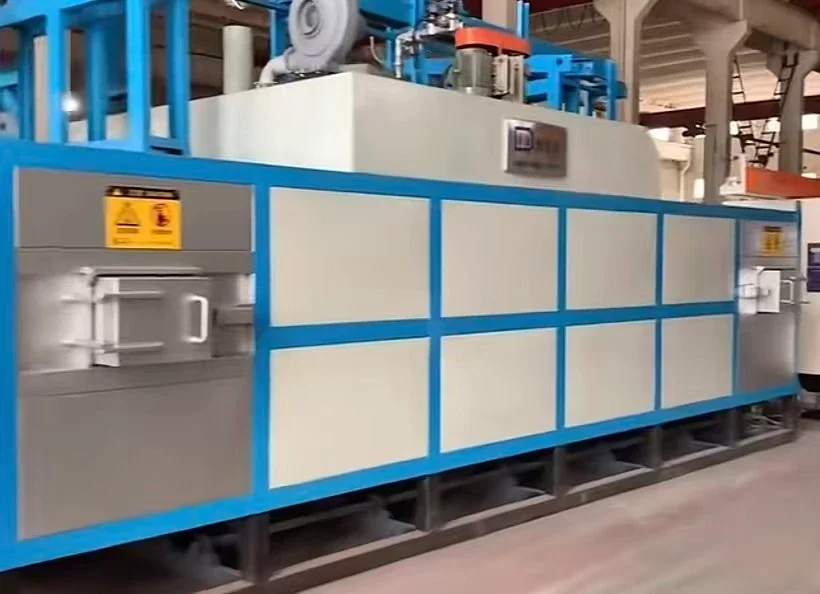

Preheating
Preheat the aluminum billet, extrusion die and extrusion press before forming.

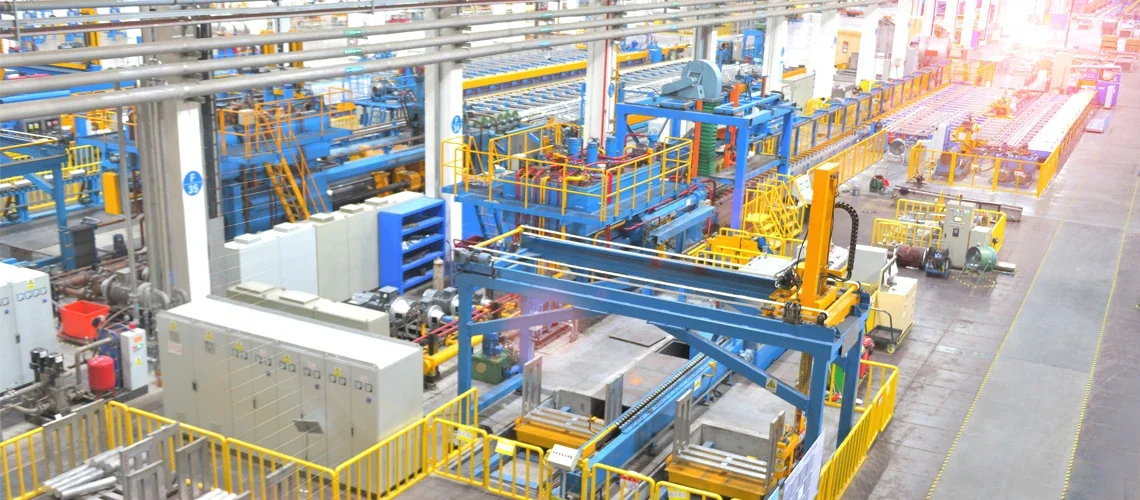

Extrusion
A 1,250-tonne fully automatic aluminum extrusion line forms the profile.

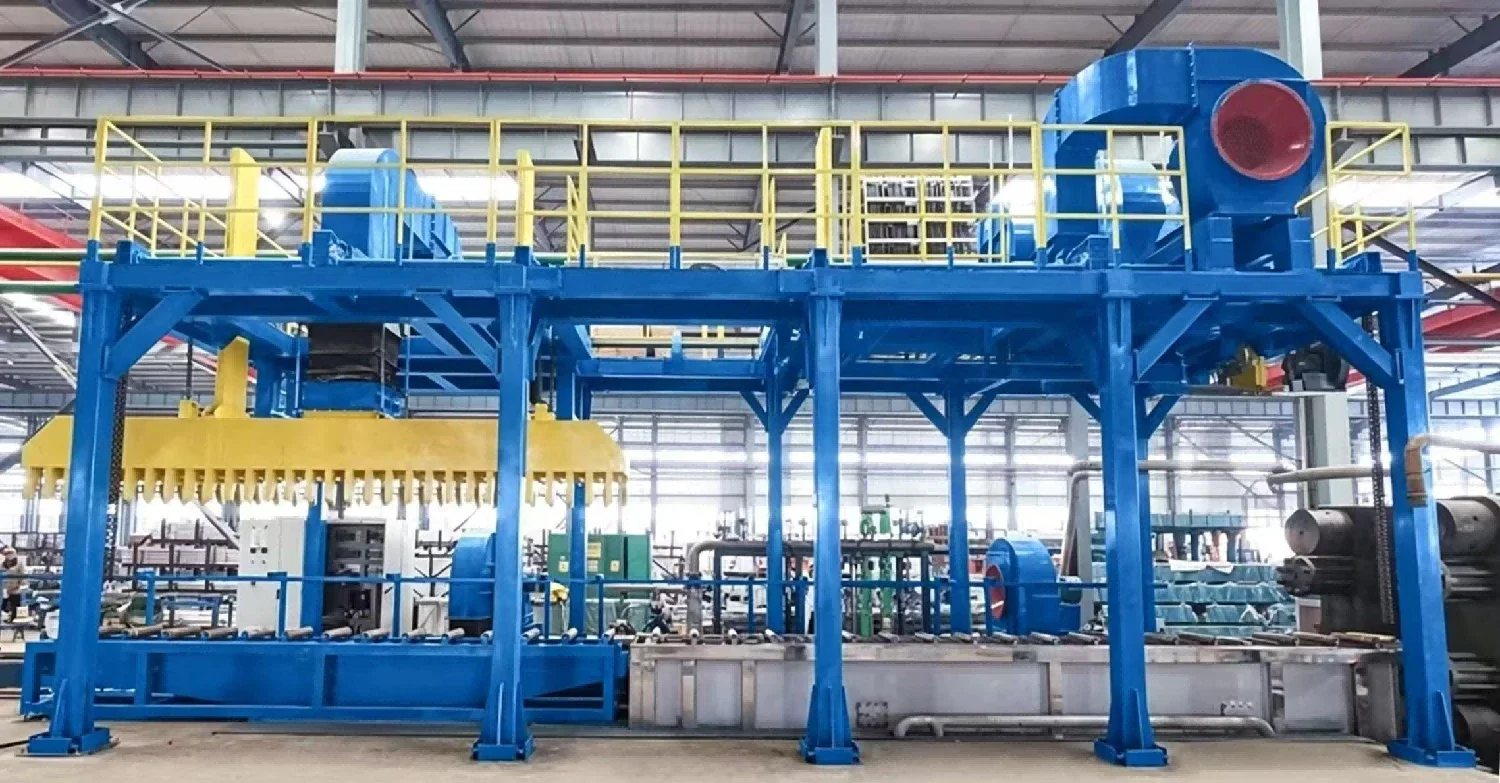

In-line quenching
Quenching follows extrusion within the documented production line.

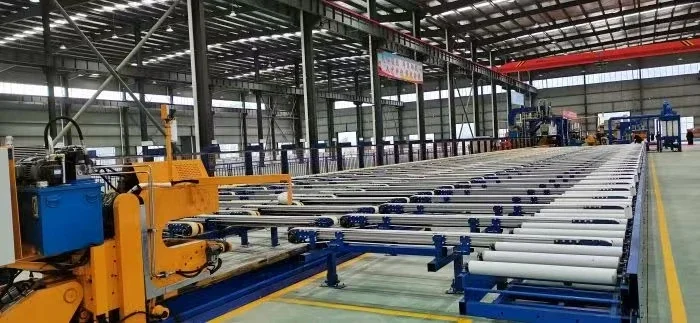

Straightening
Straighten the extruded profiles on the extrusion production line.

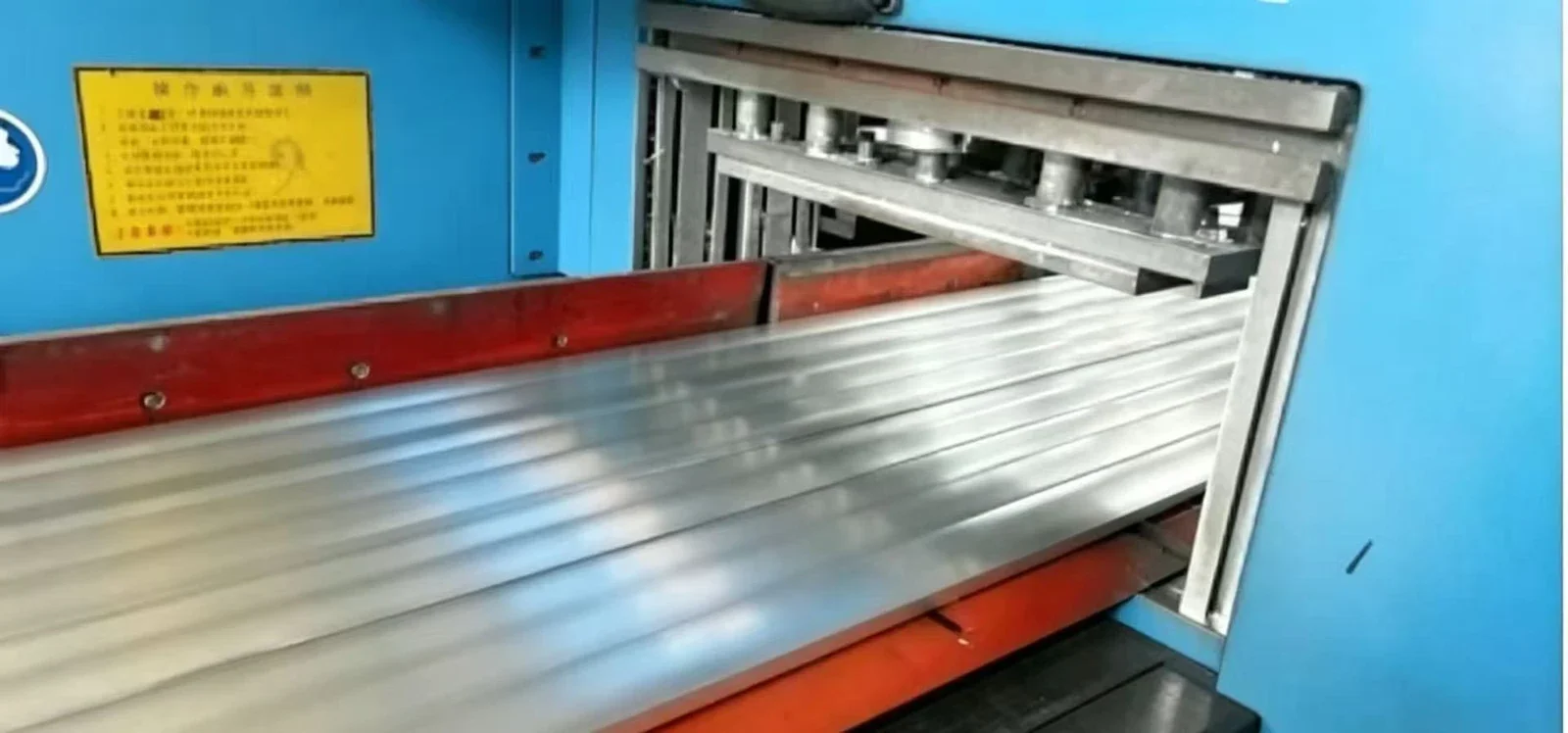

Profile cutting

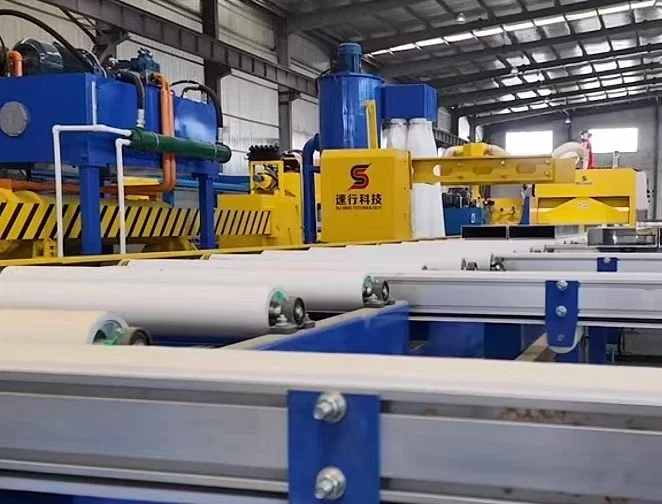

Cut the extruded profiles before subsequent processing.

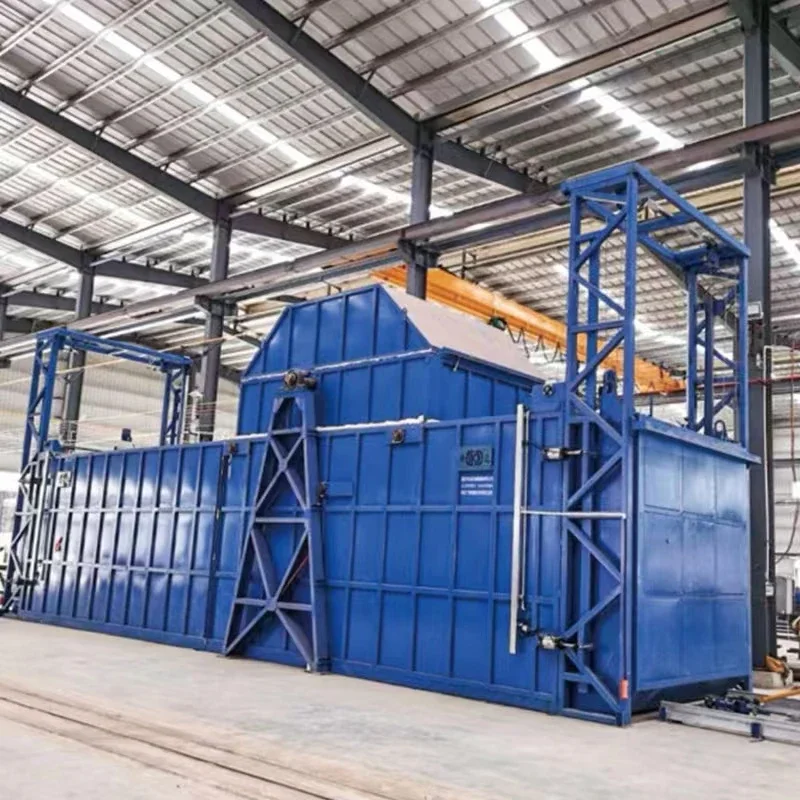

Artificial ageing
Use an ageing furnace for the documented heat-treatment stage.
Material & profile inspection
Inspect material and profile characteristics using the methods detailed below.
Inspection ↓Blank cutting

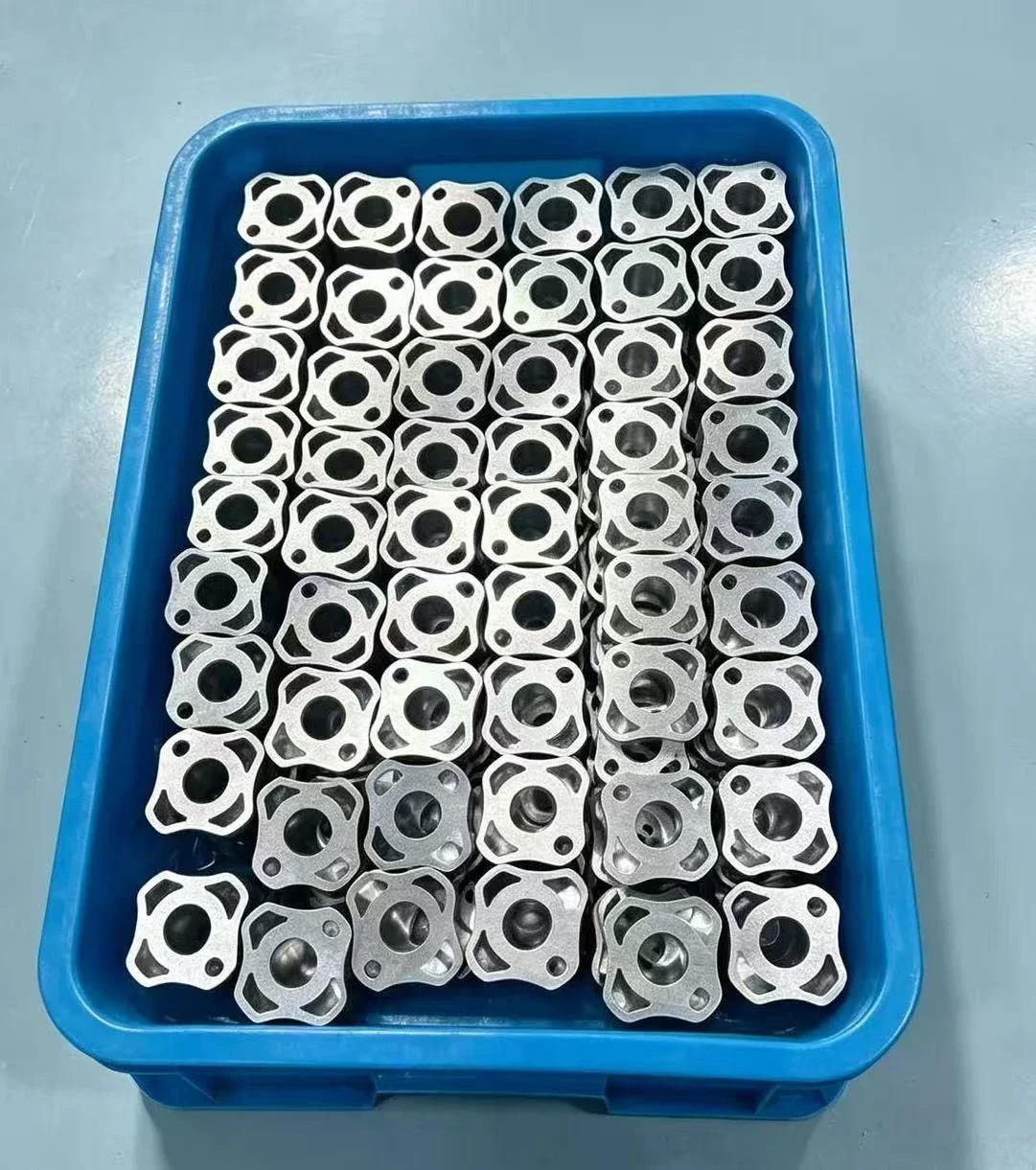

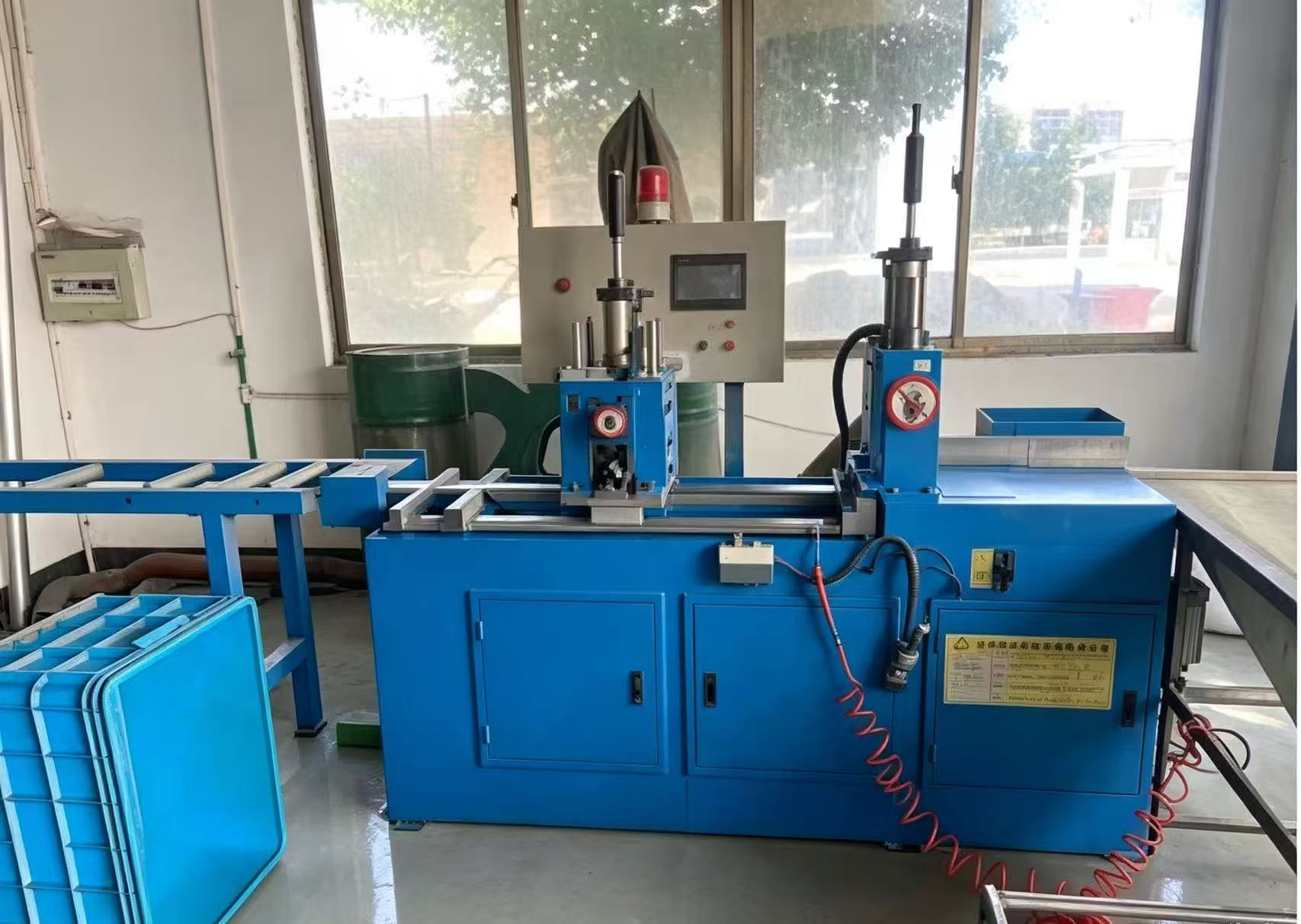

A fully automatic CNC aluminum cutting machine prepares the component blanks.

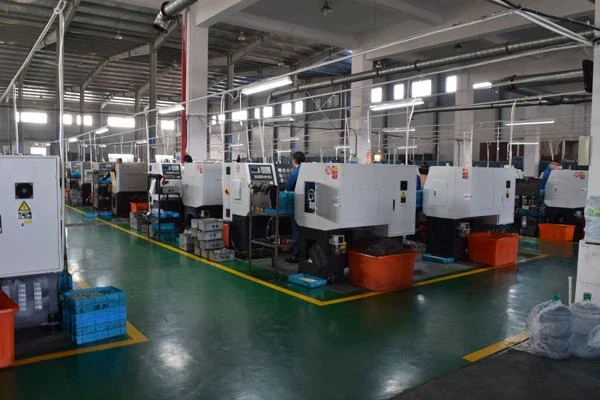

CNC machining

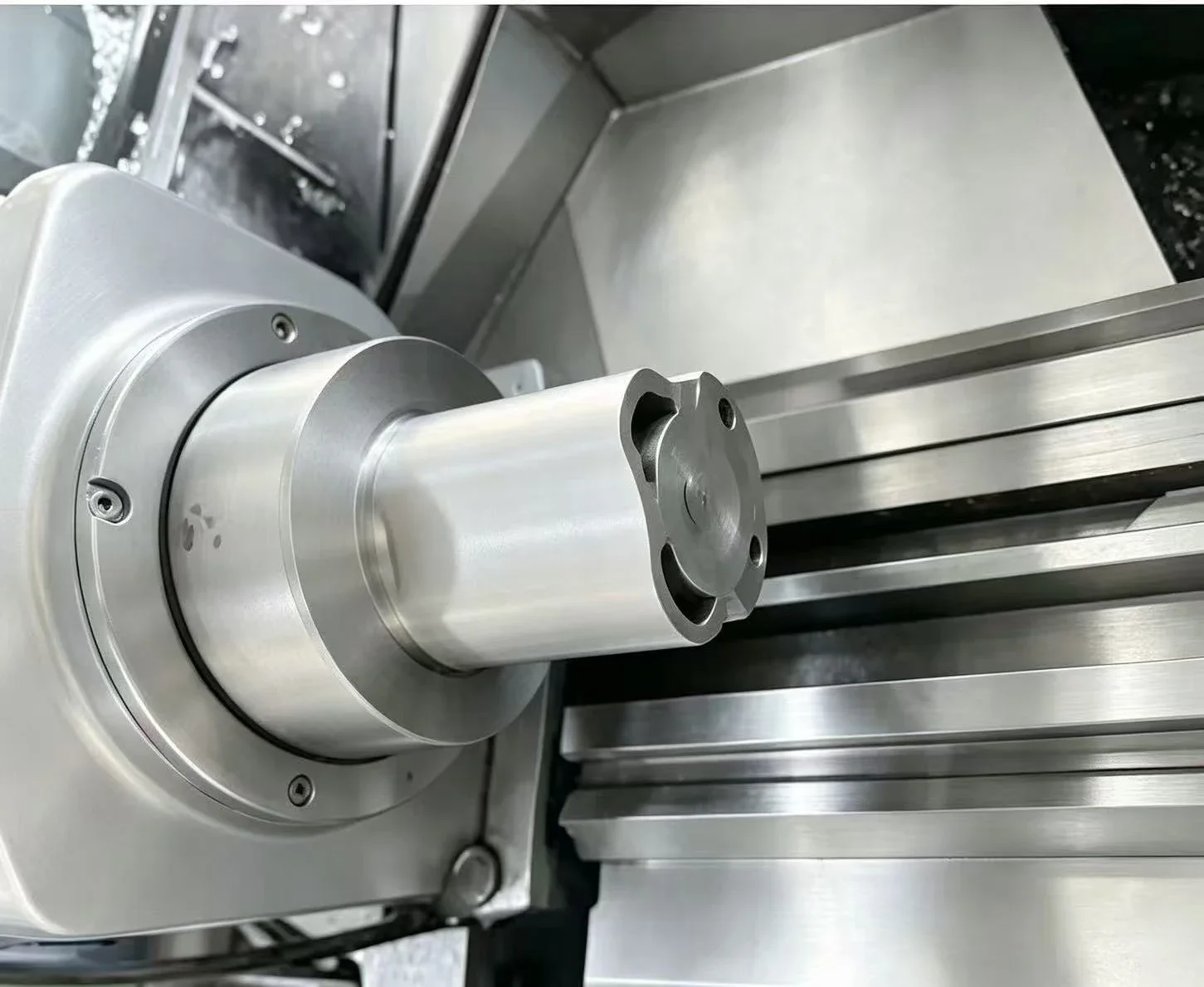

CNC lathes machine the core to the component drawing.
Magnetic cleaning

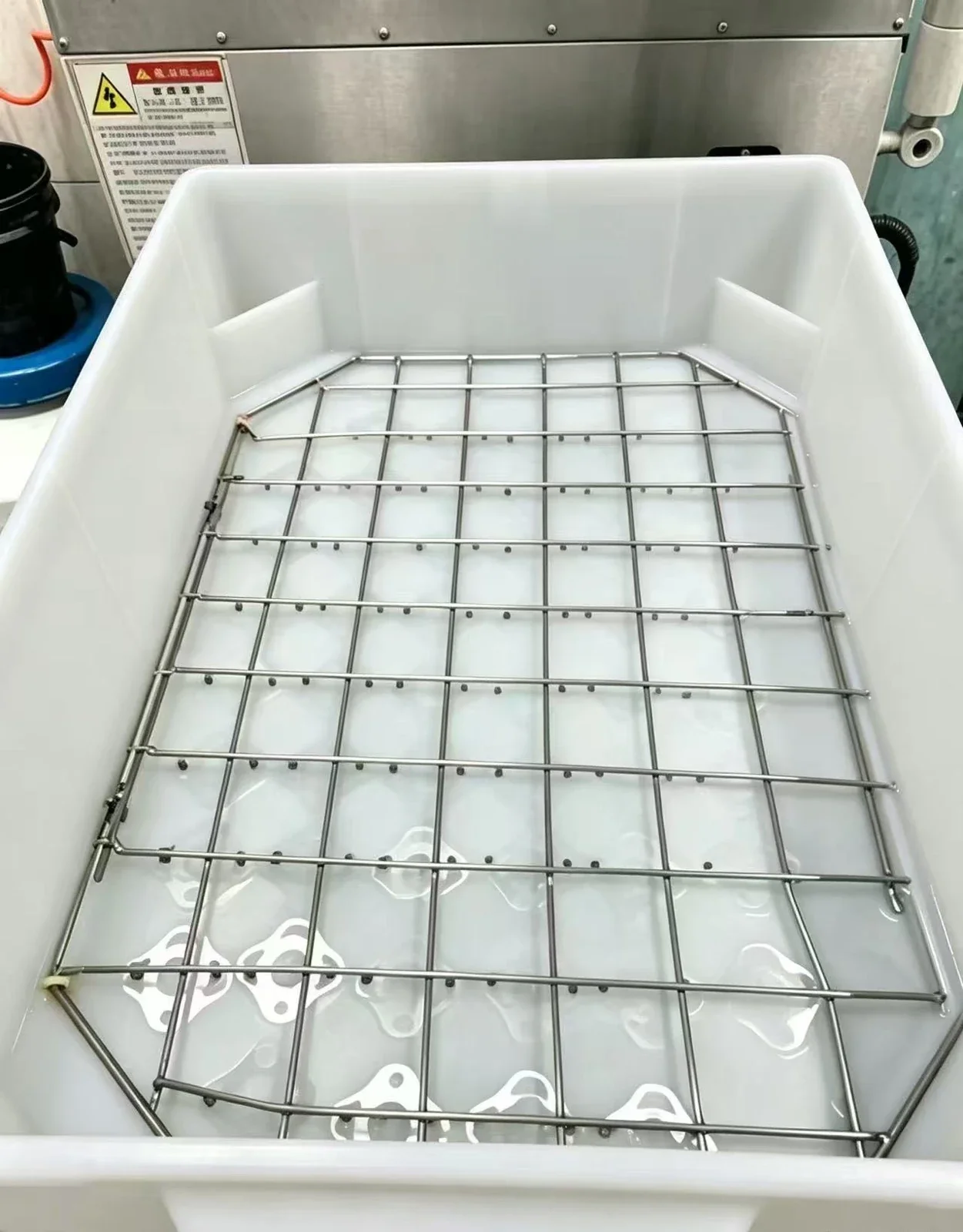

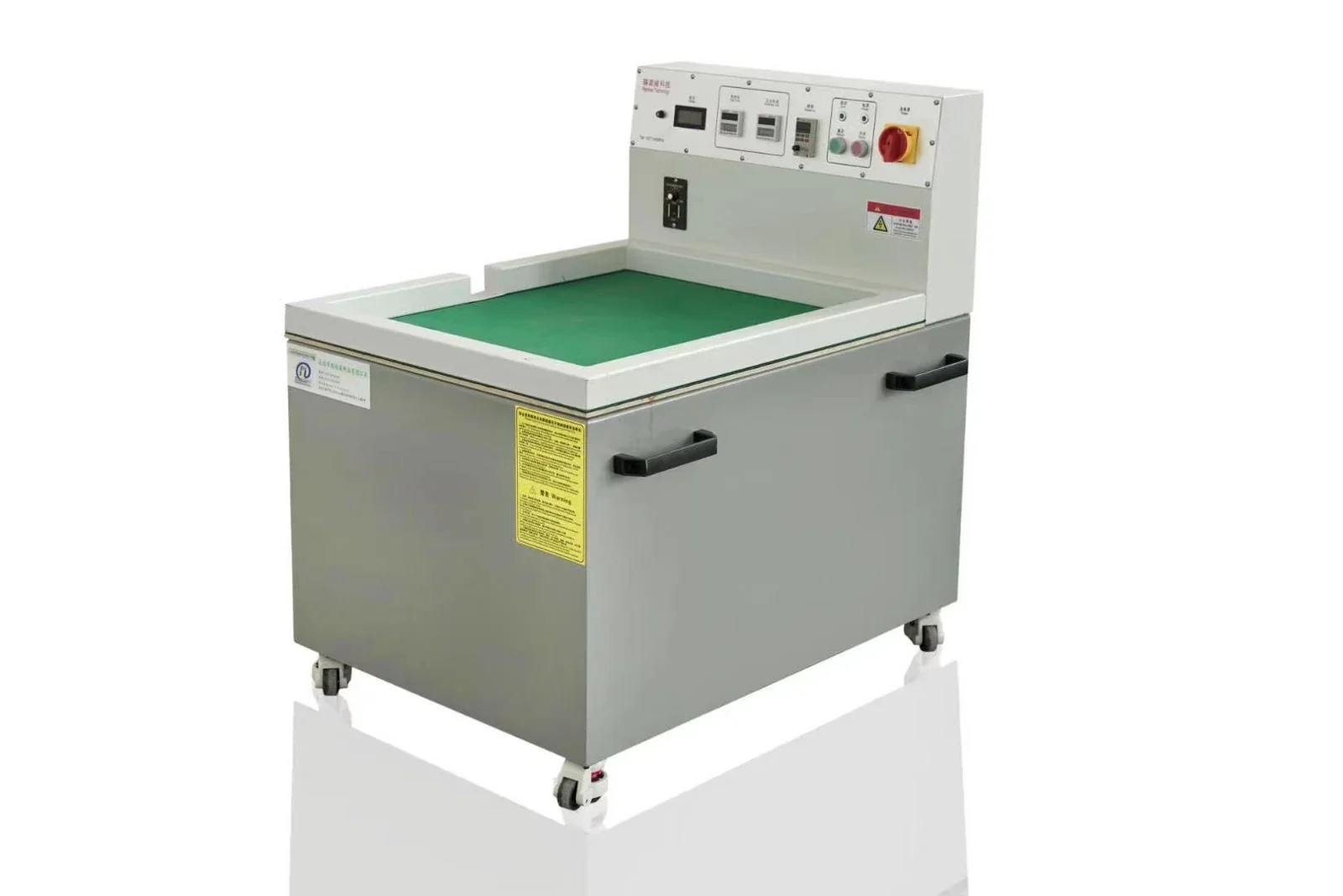

Magnetic cleaning follows machining before final inspection.
Finished component inspection

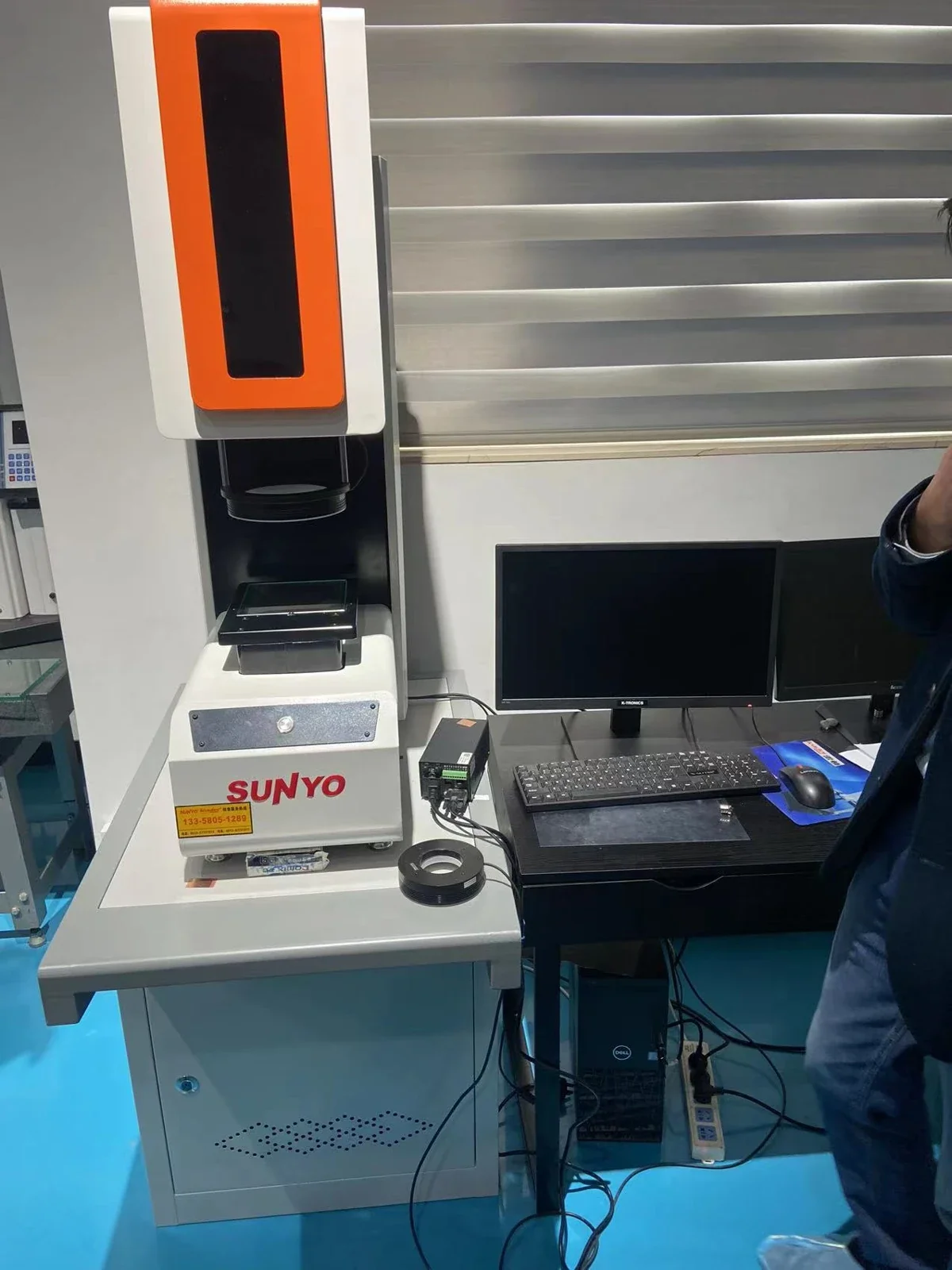

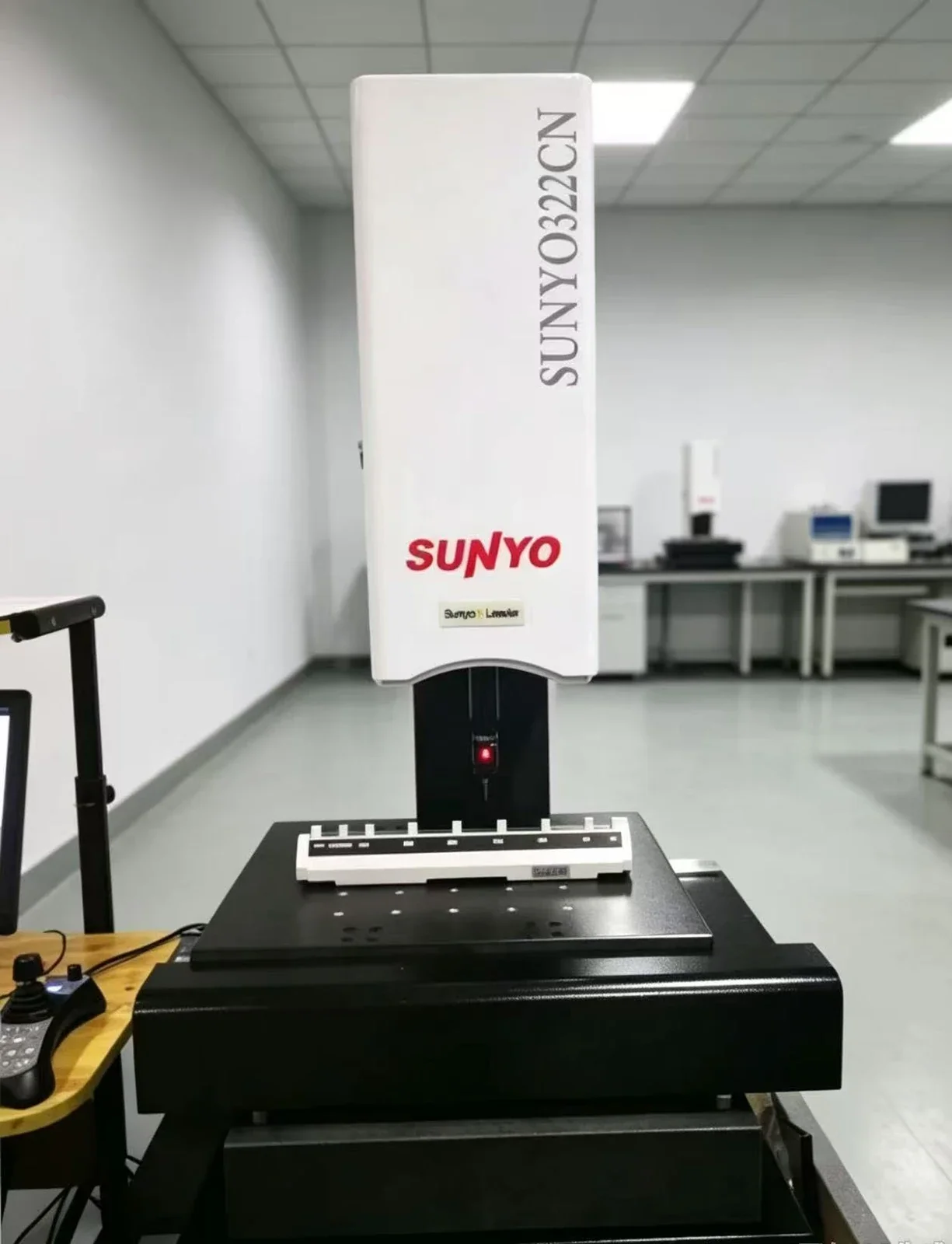

Sunyo one-click measuring equipment and coordinate measurement support final dimensional checks.
Packaging & storage
Protect, box and store the finished components for delivery.
Protective packing and organized storage ↓Material, dimensional and surface inspection

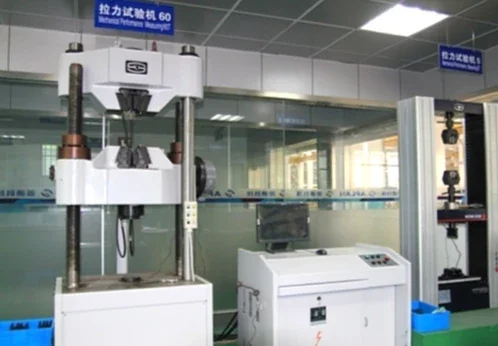

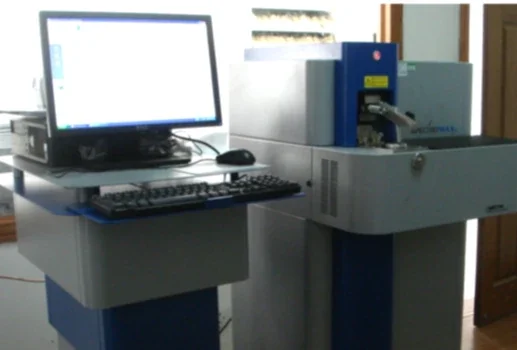

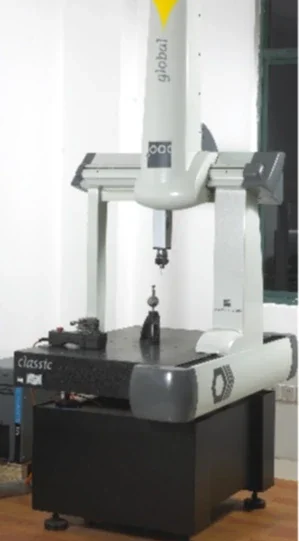

The documented inspection route includes spectrometry, tensile testing, hardness testing, electron microscopy, surface roughness measurement and coordinate measurement. Finished components are checked using Sunyo one-click measuring equipment and a coordinate measuring machine.
Inspection items and acceptance limits are agreed against the customer drawing and specification.
Quality management ↗Protective packing and organized storage

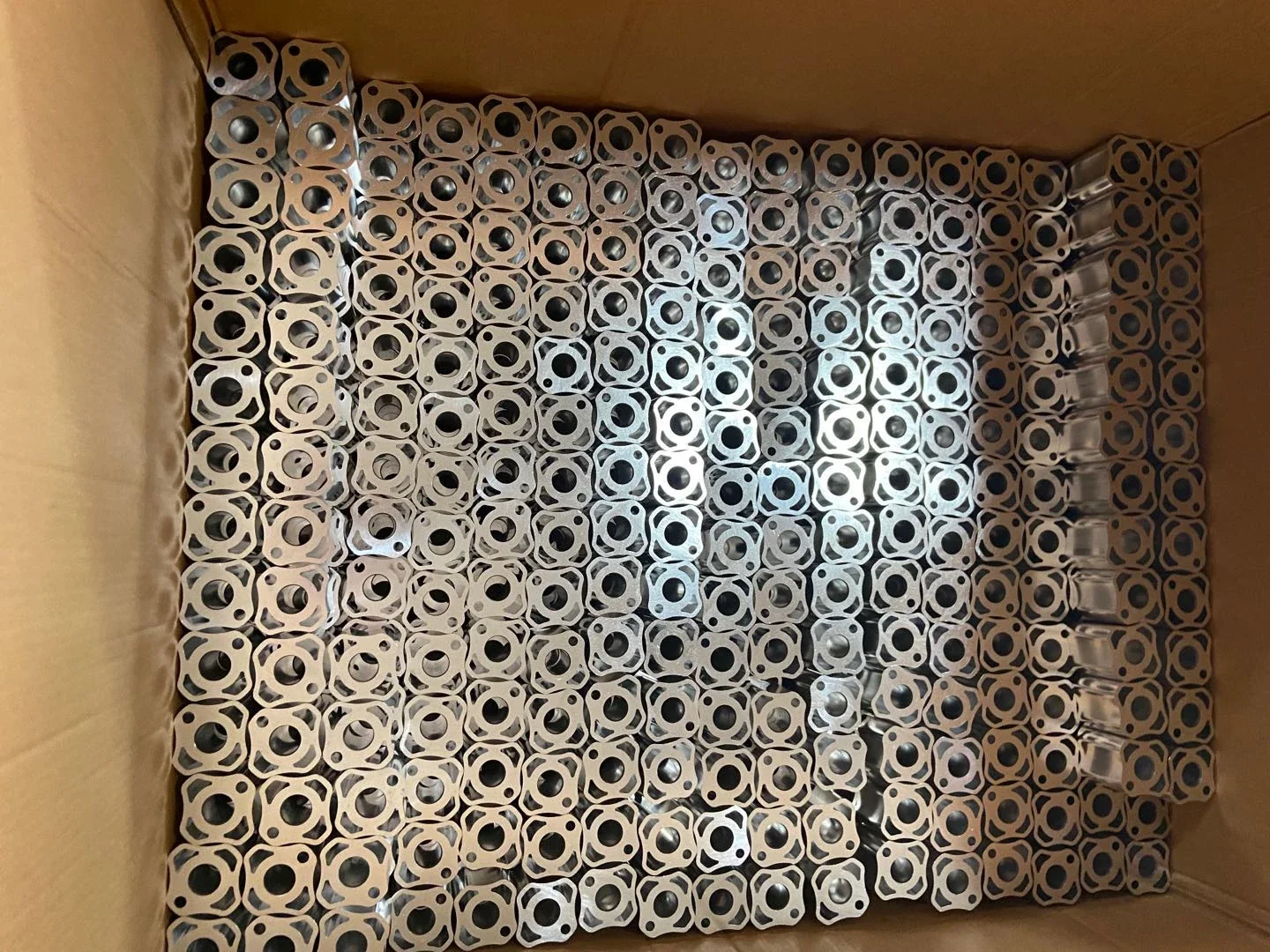

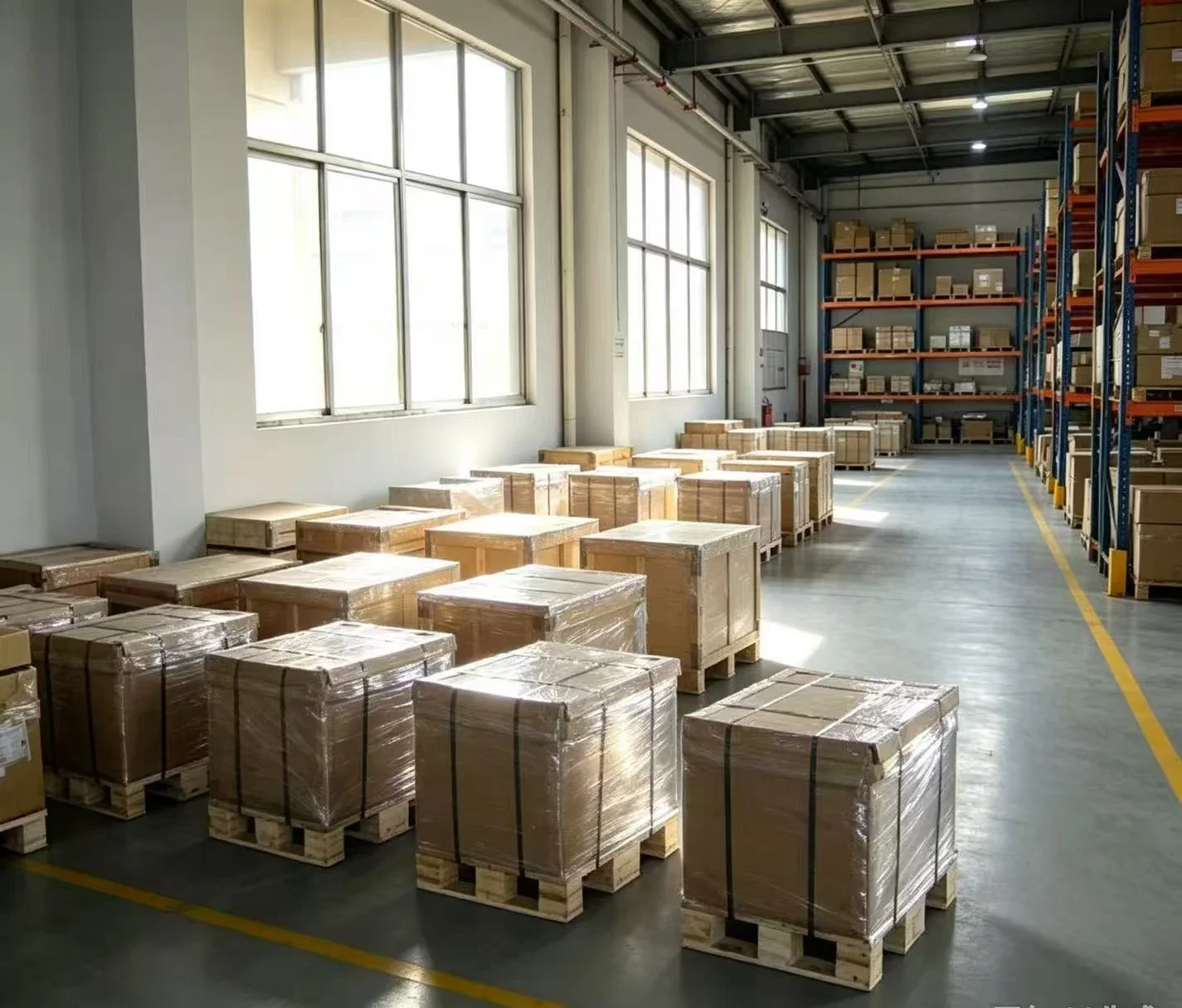

Finished cores are arranged with protective separation before boxing and storage. Discuss quantities per carton, identification and shipping requirements for your order.
Product specifications and drawing review
The confirmed material and reference part details are listed below. Send your drawing for a review of dimensions, tolerances, machining requirements and order quantities.
| Part number | SS-CB0475-200 |
|---|---|
| Material | 6082-T6 aluminum |
| Vehicle platform | GM T1XX |
| Application | Rear differential mounting bushing core |
| Markets served | USA |
| Dimensions & tolerances | Confirm on the approved drawing. No dimensional or tolerance values are specified here. |
| Surface & cleanliness | CNC machining and magnetic cleaning are included in the documented route. Confirm surface roughness, deburring and cleanliness requirements on the drawing. |
| Assembly performance | Loads, vibration performance and vehicle compatibility require assembly-level validation. No load rating or NVH performance value is stated for the core alone. |
| Custom requirements | Provide a drawing, sample reference, material specification, annual volume and packing requirements for feasibility review. |
